Re: [VAL] Dump valve removal

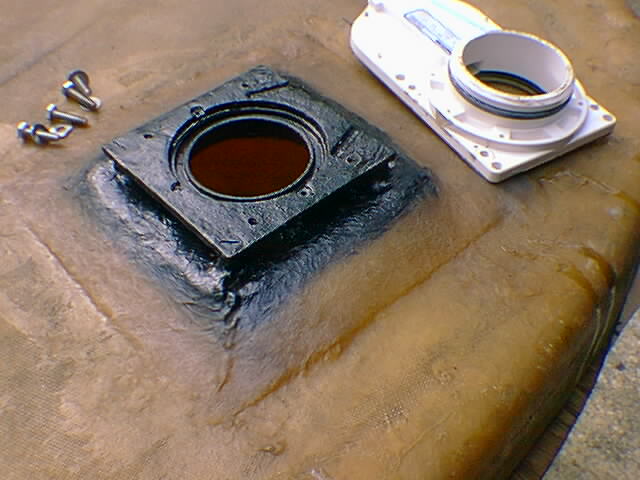

On my 63 Globetrotter, the black tank was fiberglass and had a flange
molded into the fiberglass that the slide valve attached to. see:
http://www.nwflorida.net/apr7.jpg
The screws/bolts( I forget which) were also rusted. I was able to get
the tank and valve out as one piece and then able to used pb Blaster and
a torch to get the fasterners out. I was able to easily remove the
tank/valve since all the wood above and below was gone. I guess thats
one advantage of having a rotten floor.

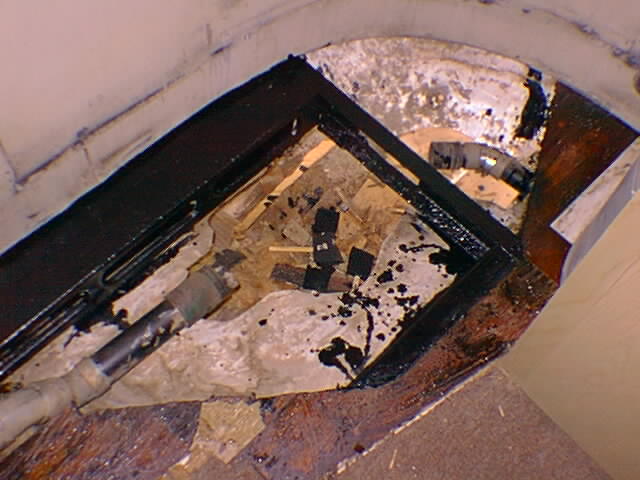

The two sink/tub drain lines that meet in the coupler below the valve
had been cut and then a rubber raditor hose had been used to slip over
the joint . Two raditor clamps on each hose then were clamped down to
seal the radiator hose to the pipes. You can see ( if you look closely)
the two pipes with the rubber sleeves in this pic
http://www.nwflorida.net/apr5.jpg
