[VAC] Re: hookup with 6 pin round connector

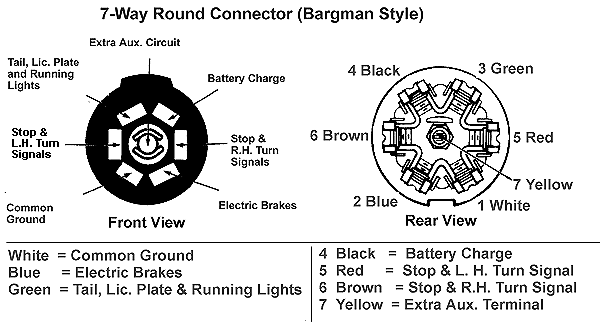

The attachment, bargman.gif is a drawing of the standard connections for
the 7 bin connector. Fords with the 7 pin towing package come with these
connections. Every connector I've bought in the past few years has
included a diagram like this one. Older Airstreams used a different set
of connections but sometimes the same connector. All should be set to
this set of connections so they work with all modern tow vehicles.
Gerald J.
